Garolite G10 FR4 Fro Frors-ka

Get Latest Price

Nooca Bixinta:	T/T,D/P,D/A
Madadaalo:	FOB,CFR,CIF,EXW,FAS,FCA,DDP,DDU
Min. Dalbo:	100 Kilogram
Gaadiidka:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: FR4 Sheet

Brand: XYH

Origin: Maacuun

Shahaadada: ISO9001

Meesha Asalka Ah: Maacuun

Noocyada: Xaashida daboolka

Wax: FiberGlass

Size: 1020*1220mm, 1030*1230mm, 1220*2440mm

Color: green, black, yellow, white

Dhumuc Weyni: 0.2-50mm

Baakado & Gaarsiin

Iibinta Cutubyada

Kilogram

The file is encrypted. Please fill in the following information to continue accessing it

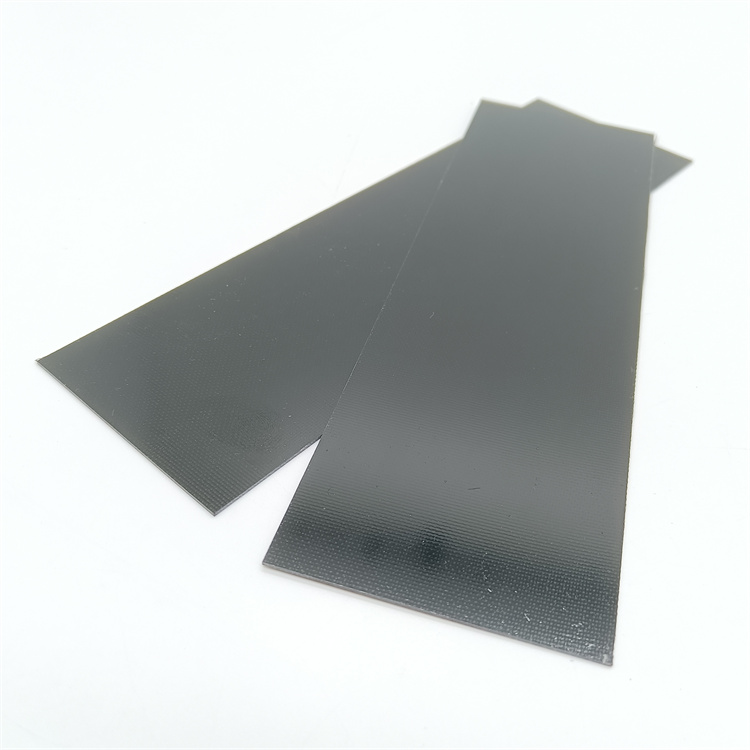

Xaashida madow ee Fr4.

Sida loo nadiifiyo looxa epoxy.MP4



Tafaasiisha Sheyga

Qalabka isku-dhafka ah ee loo yaqaan 'epoxy resin' iyo dhalada dhalada ayaa si ballaaran loogu isticmaalaa elektiroonigga, korantada, isgaarsiinta iyo meelaha kale ee ay sabab u tahay guryaha korantada ee aadka u fiican, xoogga makaanikada iyo iska caabbinta kuleylka. "FR" ee FR4 waxay u taagan tahay "ololaynta ololka", taasoo muujineysa inay leedahay guryo dib u dhac ah oo wanaagsan.

Astaamaha waxqabadka

KHATARTA CODSIGA: ISBoolka Sare ee Daaweynta, Dielectric-ka hoose ee hooseeya, oo ku habboon wareegga sare ee soo noqnoqda.

Xoogga makaanikada: xoogga foosha sare iyo iska caabinta saameynta leh.

Iska caabbinta kuleylka: waxay xasilloon tahay heerkulka sare, sida caadiga ah 130 ° C illaa 140 ° C.

Dib-u-dhigista ololka: Wuxuu la kulmaa Ul94 V-0 Flame Fandardaha Flalds oo leh iska caabbinta dabka oo wanaagsan.

Cadaadiska kiimikada ah: iska caabbinta wanaagsan ee kiimikada badankood.

Deganaanshaha cabbirka: waxay joogi kartaa xasillooni yar oo ku xusan isbeddelada heerkulka iyo huurka.

Comparison Table: 3240 Epoxy Sheet vs. FR4 Sheet
Characteristics	3240 Epoxy Sheet	FR4 Sheet
Main Applications	Structural insulation parts, mechanical support	Printed circuit board (PCB) substrate
Key Processing Techniques	Mechanical processing (cutting, drilling)	PCB processes (etching, copper plating, etc.)
Key Performance Focus	Mechanical strength, insulation	High-frequency signal transmission, dielectric stability
Typical Thickness	0.5mm–50mm (thicker)	0.2mm–3.2mm (thinner)

Faa'iidooyinka

Waxqabadka Sare: Guryaha korantada ee aadka u wanaagsan iyo astaamaha farsamada, oo ku habboon dalbashada codsiyada.

Dib-u-dhigista ololka: Wuxuu la kulmaa heerar adag oo olol ah oo ololaya oo aad u nabad qabata.

Ruuxitaan: ku habboon codsiyo kala duwan oo elektiroonig ah iyo koronto.

Wax-ka-qabashada: Way fududahay in la gooyo, qoditaanka iyo dusha sare ee daweynta.

Goobaha Codsiga

Waxsoosaarka PCB: FR4 waa maaddada ugu weyn ee wax soo saarka loosoosaar boodhka la daabacay (PCBBs) waxaana si weyn loogu isticmaalaa aaladda elektiroonigga ah.

Dambiilaadda korantada: Waxaa loo isticmaalaa in lagu qaybiyo qaybaha qalabka korantada sida transformersers, Relays, beddelaadda, iwm.

Qalabka isgaarsiinta: Waxaa loo isticmaalaa qalabka isgaarsiinta sare sida anteenooyinka iyo miirayaasha.

Xakamaynta Warshadaha: Waxaa loo isticmaalaa golayaasha wareega iyo qaybaha kharashka ku jira nidaamyada xakamaynta warshadaha.

Elektaroonigyada baabuurta: Waxaa loo isticmaalaa unugyada xakamaynta baabuurta (ECUS) iyo dareemayaasha, iwm.

Aerospace: Waxaa loo isticmaalaa in looxyada wareejinta waxqabadka sare ee qalabka elektaroonigga ah.

Badbaadinta Deegaanka: Alaabada qaarkood waxay u hoggaansamaan heerarka ilaalinta deegaanka sida Rohs.

O1CN01nzjbKB2LKkYDjiqMa_!!2218887909674-0-cib

3240 Gudiga Epoxy:

Iska caabbinta heerkulka: Waxay leedahay qiimeyn heerkul ah oo ah b, dayactirka awooda farsamada sare ee heerkulka qolka illaa 130 ° C.

Guryaha korantada: Waxay soo bandhigtay guryo koronto oo aad u wanaagsan oo ku jirta xaaladaha qalalan iyo qoyan labadaba, waana olol u adkaysta.

Aagagga Codsiga: Inta badan waxaa loo isticmaalaa in warshadaha korantada iyo elektiroonigga ah loogu talagalay waxyaabaha ku saabsan qaab dhismeedka qaabdhismeedka.

Tilmaamaha: Waxay leedahay adhesion xoog leh, oo si fudud u daaweyn ah, guryaha farsamada wanaagsan, qaabab kaladuwan, iyo hoos u dhac hoose.

FR4 Gudiga:

Cadaadiska heerkulka-heerkulka ah: Waxay leedahay iska caabin heerkul sare ah, oo adkaynaysa heerkulka illaa 180 ° C.

Iska caabbinta qaddarka: Waxay ka hortagi kartaa nabaad-guurka inta badan kiimikooyinka badankood, taasoo dhalisay nolosha adeegga dheer.

Xoogga makaanikada: Waxay leedahay awood farsamo oo sare, iska caabisa saamaynta dibedda iyo gariirka.

KHATARTA CODKA: Waxay bixisaa dahabka korantada wanaagsan, si wax ku ool ah uga hortagga baxsiga iyo faragelinta elektaroonigga ah.

Xasiloonida cabbirka: Waxay ilaalisaa xasillooni murugo ku jirta inta lagu jiro wax soosaarka, yareynta sunta.

Saaxiibtinimada deegaanka

Aagagga dalabka: Waxaa si weyn loogu isticmaalaa elektiroonigga, injineerinka korantada, isgaarsiinta, hawada, iyo beeraha kale, sida khaanadaha kombiyuutarka iyo awooda kombiyuutarka.

G10 Gudiga Epoxy:

Iska caabbinta heerkulka: Waxay leedahay isbarbardhiga heerkulka illaa 200 ° C, taasoo ka dhigeysa guddi xinjir aad u fiican.

Tilmaamaha: Waxay leedahay qaabab kala jaad ah, si fudud oo loo daaweeyo, adhesion xoog leh, iyo hoos u dhac hooseeya.

Aagagga dalabka: In kasta oo wax qabadkiisu uu ka sarreeyo, si weyn looma korsanin tixgalinta qiimaha. Waxay leedahay codsiyo qaar ka mid ah duulista, Aerospace, dhismaha, kiimikada, iyo warshadaha beeraha.

Marka la soo koobo, 3240, Fr4, iyo G10 guddiyada looxyo, guryaha korantada, xoogga farsamada, xakameynta farsamada, oo ka dhigaya ku habboon codsiyada gaarka ah waxay kuxirantahay baahiyo gaar ah iyo xaalado.

Shirkaddayadu waxay diiradda saareysaa balaastigga waxqabadka heerka sare iyo qalabka dahabka. Alaabooyinkayaga ugu muhiimsan waxaa ka mid ah go'yaal caag ah oo dhameystiran sida poloyoxymymerene (pom), polycharbonate (polychertonenenene (polyphertones), iwm), polyphertones (polythertone), phenole-ka (phenethertone) iyo gudiga galaaska galaaska ephox. Iyada oo leh guryo aad u wanaagsan sida caabbinta heerkulka sare, xidho iska caabbinta iyo xoogga sare, alaabooyinkayaga ayaa si weyn loogu adeegsadaa gawaarida tamarta cusub, kombiyuutarka elektaroonigga ah, mashiinnada warshadaha, aerospace iyo beero kale.
