GPO3 CNC Xaashida Dahaarka Mashiinnada iyo Qaybaha

GPO3 CNC Xaashida Dahaarka Mashiinnada iyo Qaybaha

Get Latest Price

Nooca Bixinta:	T/T,D/P,D/A
Madadaalo:	DDU,DDP,FCA,FAS,EXW,CIF,CFR,FOB
Min. Dalbo:	100 Kilogram
Gaadiidka:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: GPO3 Sheet

Brand: XYH

Origin: Shiinaha

Shahaadada: ISO9001

Noocyada: Xaashida daboolka

Place Of Origin: Guangdong, China

Brand Name: XYH

Model Number: GPO3/UPGM203

Type: Insulation Sheet, Machined Insulation Parts

Material: Unsaturated Polyester Resin + Glass Fiber Mat

Magaca Product: GPO3 CNC Machined Insulation Sheet and Custom Parts

Codsiga: Bus Bar Support, Phase Barrier, Arc Shield, Insulation Spacer, Custom CNC Parts

Usage: Custom machined insulation parts for switchgear, transformer and power distribution equipment

Color: Red, Black, White

Thickness: 0.8-100 mm

Size: 1020*2040 mm; parts cut to drawing

Density: 1.81-1.83 g/cm3

Flammability: UL 94 V-0

Processing Service: CNC Machining, Cutting, Drilling, Milling, Slotting, Chamfering

Feature: CNC Machined to Drawing, Custom Size, Custom Parts, Heat Resistant

Baakado & Gaarsiin

Iibinta Cutubyada	:	Kilogram
Nooca Xirmada	:	Pallet

The file is encrypted. Please fill in the following information to continue accessing it

GPO-3 xaashida xaashida



Tafaasiisha Sheyga

GPO-3 Xaashida Dahaarka ee Taageerada Busbarka iyo Qalabka beddelka

GPO-3 (UPGM203) muraayad dhalada ah oo loogu talagalay taageerada baararka baska, caqabadaha wajiga iyo gaashaanka arc - CTI 600 V raadraaca iska caabbinta, UL 94 V-0 ololka, 0.8-100 mm, CNC ayaa lagu hagaajiyay sawirkaaga.

XYH waxay soo saartaa GPO-3 xaashida dahaarka korantada iyo qaybaha GPO-3 ee mashiinka ee Shenzhen, Shiinaha. Nidaamyada taageerada baararka baska iyo isku imaatinnada qalabka wax lagu beddelo waxay u baahan yihiin shay dahaar ah oo ku ilaalinaya awooddeeda koronto ee kulaylka, iska celinaysa raad-raacida iyo dabada sannadaha adeegga, oo aan quudin dabka. GPO-3 - heerkulbeeg heerkulbeeg ah oo ah resin polyester-ka aan dheregsanayn oo lagu xoojiyey derin fiilo galaas ah oo aan tol lahayn - ayaa loo cayimay sida saxda ah ee waajibaadkan, waxaana loo keenay sidii go'yaal ama taageerooyin la dhammeeyey oo lagu rakibay sawirkaaga.

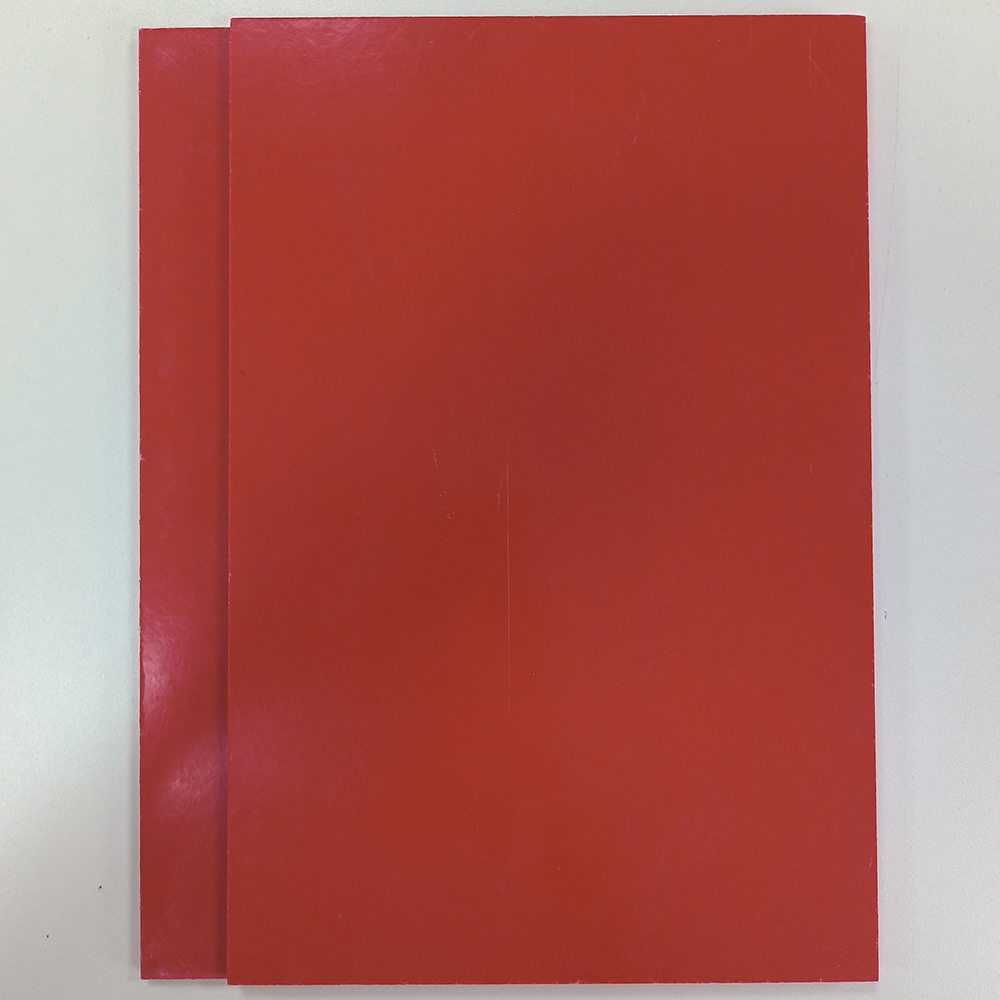

Stacked red GPO-3 electrical insulation sheets with smooth, glossy surface

Waa maxay sababta GPO-3 ee Taageerada Busbarka iyo Qalabka beddelka

Raadinta iyo iska caabbinta arc: CTI ≥500 V (caadi ahaan 600 V, IEC 60112) iyo caabbinta arc ≥180 s (IEC 61621) - labada guri ee go'aamiya in xannibaadda dahaarka ay ka badbaado wasakhda iyo beddelidda dhacdooyinka

Dab-demiska: UL 94 V-0, is-deminta

Awoodda dielectric: ≥10.5 kV/mm siman ilaa laminations (IEC 60243, saliid, 90 °C, 2 mm)

Taageerada makaanikada: xoogga dabacsanaanta ≥130 MPa iyo awoodda saamaynta ≥35 kJ/m² - waxay sidataa baska, maaha kaliya xannibaad

Waxqabadka kulaylka: Qalabka heerka F, heerkulka adeegga ilaa 155 °C (IEC 216, 20,000 h), tusmada dulqaadka kulaylka 130 (IEC 60216)

Qaadashada qoyaanka hooseeya: ≤63 mg oo muunad 4 mm ah (ISO 62), ilaalinta caabbinta dahaarka ee deggan qolalka wareejinta qoyan

Mashiin: Goynta CNC, qodista, shiididda iyo daloolaynta si sawir la'aan ah

Heerka: IEC 60893-3-5 / NEMA GPO-3 (UPGM203)

Qaybaha caadiga ah ee aan Mashiinno

Taageerada bar baska iyo xirmooyinka baska

Caqabadaha wajiga iyo dahaarka wejiga dhexdooda

Gaashaanka Arc iyo jeexjeexyada qaybaha

Sheerayaasha dahaarka iyo dahaarka isku dhejinta ee transformers iyo reactors

Dabaqyada dhejinta iyo taarikada dahaarka ee terminaalka

Afyare iyo qaybaha dahaarka ee matoorada iyo matoorrada

Shaxda qeexitaanka

Property	Unit	Requirement
Flexural strength, perpendicular (normal / 130 °C)	MPa	≥130 / ≥65
Impact strength, parallel, Izod notched	kJ/m²	≥35
Electric strength, perpendicular (in oil, 90 °C, 2 mm)	kV/mm	≥10.5
Breakdown voltage, parallel (in oil, 90 °C)	kV	≥35
Insulation resistance after 24 h water immersion	MΩ	≥5.0×10²
Water absorption (4 mm specimen)	mg	≤63
Density	g/cm³	1.70-1.90
Flammability	Class	V-0
Compressive strength, perpendicular	MPa	300

Mashiinka CNC ee Sawirkaaga

U dir sawir, muunad ama sawir-gacmeed. Kooxdayada injineernimada waxay dib u eegaan fasalka danab, masaafada gurguurta, culeyska farsamada iyo joomatari kor u kaca, waxay kala taliyaan darajada iyo dhumucda, iyo mashiinada qaybta guriga - oo ay ku jiraan godadka, boosaska, miiska miiska, chamfers iyo dhamaystirka cidhifka. Qaybaha GPO-3 ee mishiinada ah ayaa la keenaa oo la soo saaray oo cabbir ahaan baa la baaraa.

Dukumeenti iyo Tayo

Warbixinta kormeerka dufcadaha oo wata shixnad kasta oo daboolaysa muuqaalka, cabbirka iyo dhumucda

Baaqa EU RoHS iyo MSDS ee xereynta u hoggaansanaanta

Tijaabada qolo saddexaad waxay ka warbixisay xoogga dielectric, heerka kulaylka iyo ololka la heli karo haddii la codsado

ISO 9001, ISO 14001 iyo IATF 16949 (oo hore u ahaan jirtay TS16949)

FAQ

Q1: Waa maxay sababta GPO-3 loogu isticmaalo taageerada baararka baska halkii laga isticmaali lahaa bac caadi ah? Sababtoo ah taageerada bar baska waa in ay qabato saddex shaqo hal mar: qaado culeys makaanik ah, qabsato xoogga korontada, oo ay ka badbaado raadraaca iyo dabarka. GPO-3 wuxuu isku daraa xoogga dabacsanaanta ≥130 MPa oo leh CTI ≥500 V (caadiga ah 600 V) iyo caabbinta arc ≥180 s, waana UL 94 V-0 oo la qiimeeyay, sidaa darteed ma sii wado dab ku jira xayndaabka beddelka.

Q2: Waa maxay dhumucdiisuna tahay inaan u isticmaalo xannibaadda wajiga ama taageerada baska? Dhumucdiisuna waxay ku xidhan tahay korantada nidaamka, meelaha gurguurta ee loo baahan yahay iyo fogaanta nadiifinta, iyo culayska farsamada ee qaybta. Inta u dhaxaysa xaashidayadu waxay ka bilaabataa 0.8 mm ilaa 100 mm. Soo dir sawirka ama shuruudaha korontada iyo farsamada, injineeradayadu waxay ku talinayaan dhumucda iyo darajada.

Q3: Miyaad ku mashiin kartaa taageerada boosaska, godadka iyo goynta? Haa Waxaanu CNC gooynay, qodnay, warshadeynay oo ku dhejinnay GPO-3 sawirkaaga ama muunadaada, oo ay ku jiraan mashiinnada-mashiinnada iyo mashiinnada, waxaanan siinaa qaybaha deburray oo cabbir ahaan la baaray. Waxa kale oo aad dalban kartaa go'yaal cad oo waxaad ku mashiin kartaa gudaha.

Q4: Waa maxay heerka iyo darajada qalabkani? GPO-3, oo u dhiganta UPGM203 ee hoos timaada IEC 60893-3-5 iyo NEMA GPO-3. Waa heerkulbeeg heerkulbeeg ah oo ah resin polyester-ka aan dheregsanayn oo lagu xoojiyay derin fillo dhalo ah oo aan tolnayn.

Q5: Waa maxay heerkulka ay u adkeysan kartaa? Walaxda heerka F: heerkulka adeega ilaa 155 °C (IEC 216, 20,000 h) oo leh tusaha adkeysiga kulaylka ee 130 (IEC 60216). Qiimaha korantada iyo farsamada waxaa lagu qeexay heerkulka qolka iyo 130 °C, sida ku cad shaxda sare.

Q6: GPO-3 ama FR4/3240 epoxy laminate ee dahaarka beddelka? GPO-3 ayaa ku habboon halka raadraaca iyo iska caabbinta arc iyo waxqabadka ololku ay ku badan yihiin, taas oo u ah taageerada baararka baska, caqabadaha wejiga iyo gaashaanka. Heerarka Epoxy sida FR4, G10 iyo 3240 waxay bixiyaan awood farsamo oo sare iyo iska caabin qoyaan waxaana badanaa loo doortaa substrates PCB iyo qaybaha farsamada saxda ah. Waxaan bixinaa labadaba waxaanan ku talin karnaa codsi kasta.

Q7: Waa maxay dukumeenti la keenay, oo ma bixisaa muunado? Warbixinta kormeerka dufcada ayaa la soo saaray shixnad kasta; Dukumeentiyada RoHS iyo MSDS waa la heli karaa, iyo warbixinnada imtixaanka qolo saddexaad oo daboolaya xoogga korontada, heerka kulaylka iyo ololka ayaa la bixin karaa haddii la codsado. Tijaabooyin A4 ah ayaa diyaar ah - noo soo dir darajada, dhumucda iyo tirada aad qiimaynayso, MOQ-ga qeexidaada waxa xaqiijin doona injineerkayada iibka.
