GPO3 Sheet UPGM203 Polyester Glass Mat Insulation Board

GPO3 Sheet UPGM203 Polyester Glass Mat Insulation Board

Get Latest Price

Nooca Bixinta:	D/P,T/T,D/A
Madadaalo:	CFR,FOB,CIF,EXW,FAS,FCA,DDP,DDU
Min. Dalbo:	100 Kilogram
Gaadiidka:	Ocean,Land,Air,Express
Port:	Shenzhen,Guangzhou

Kala xiriir Hada

Tafaasiisha Sheyga

Sifooyinka Badeecada

Baakado & Gaarsiin

Tafaasiisha Sheyga

Sifooyinka Badeecada

Tusaale ahaan.: GPO3 Sheet

Brand: XYH

Origin: Shiinaha

Shahaadada: ISO9001

Meesha Asalka Ah: Maacuun

Noocyada: Xaashida daboolka

Place Of Origin: Guangdong, China

Brand Name: XYH

Model Number: GPO3/UPGM203

Material: Unsaturated Polyester Resin + Glass Fiber Mat

Magaca Product: GPO3 Unsaturated Polyester Glass Mat Insulation Sheet

Codsiga: Electrical Insulation, Switchgear, Transformer, Bus Bar Support

Usage: Electrical insulation for switchgear and power distribution equipment

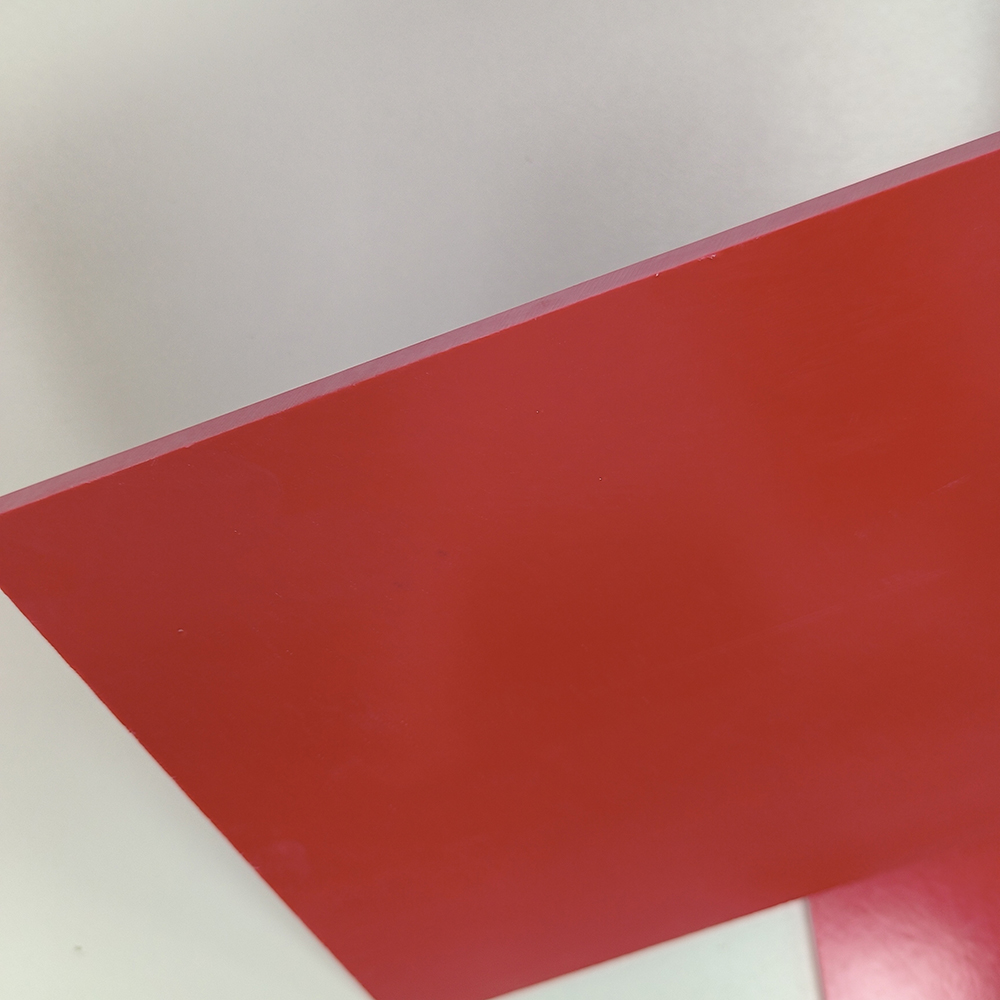

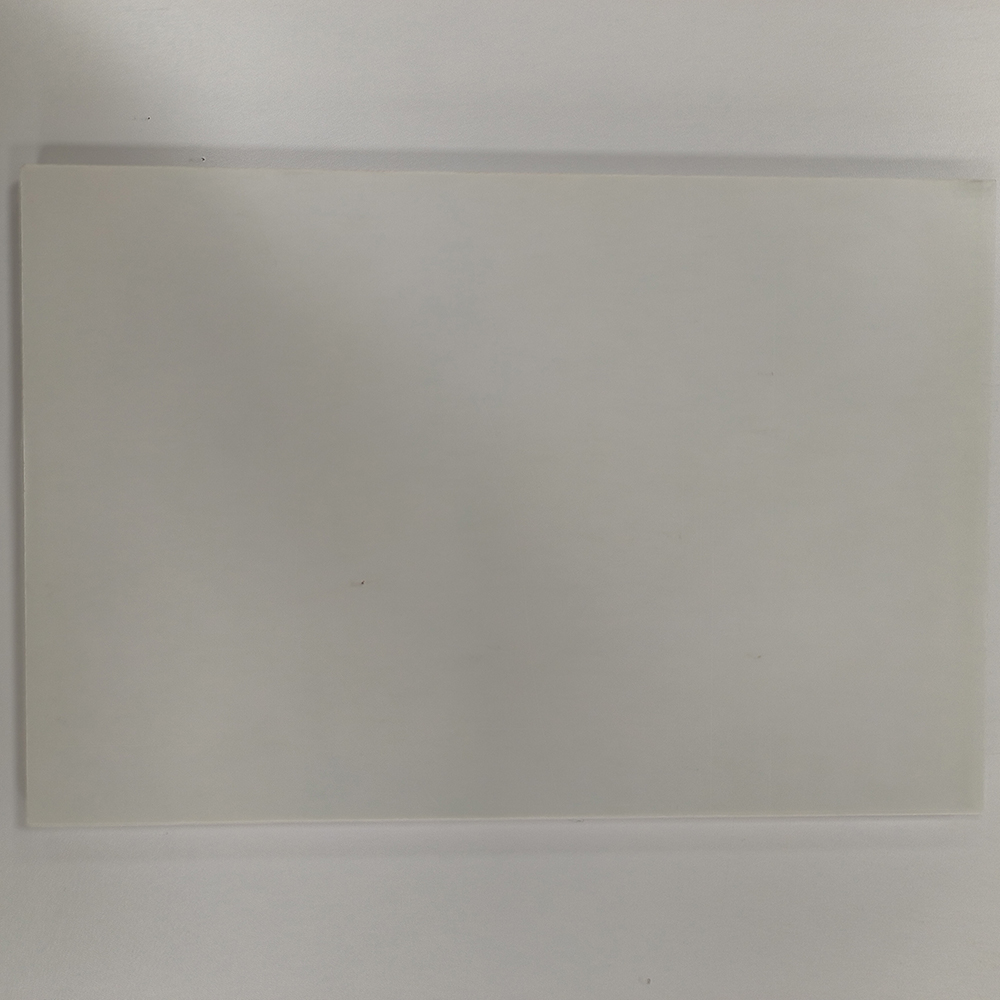

Color: Red, Black, White

Thickness: 0.8-100 mm

Size: 1020*2040 mm

Density: 1.81-1.83 g/cm3

CTI: 600 V

Thermal Class: Class F (155 C)

Flammability: UL 94 V-0

Standard: IEC 60893-3-5 / NEMA GPO-3

Processing Service: Cutting, CNC Machining, Drilling

Feature: High Electrical Performance, Heat Resistant, Arc Resistant

Customized: Accept

Sample: A4 Sample Available

Baakado & Gaarsiin

Iibinta Cutubyada	:	Kilogram
Nooca Xirmada	:	Pallet

The file is encrypted. Please fill in the following information to continue accessing it

GPO-3 xaashida xaashida



Tafaasiisha Sheyga

GPO-3 xaashida dahaadhka muraayadda polyester-ka

GPO-3 (UPGM203) muraayadda muraayadda polyester-ka - UL 94 V-0 ololka dib u celinta, CTI 600 V raadraaca caabbinta, 0.8-100 mm, CNC mashiinada sawirkaaga.

XYH waxay soo saartaa GPO-3 xaashida dahaarka korantada ee Shenzhen, Shiinaha. GPO-3 waa heerkulbeeg heerkulbeeg ah oo laga sameeyay xabagta polyester-ka aan dheregsanayn oo lagu xoojiyay derin fiilo galaas ah oo aan tol lahayn, oo ay weheliso hab-buuxiyaha ololka-dib-celinta ee halogen-free. Waa darajada doorashada halka iska caabinta ololka, qaansada iyo iska caabinta raadraaca, xoogga farsamada iyo xasilloonida cabbirku ay tahay in lagu dheellitiro kharash tartan ah - sida caadiga ah qalabka beddelka, transformers-ka, taageerada baararka baska iyo dahaarka qalabka korantada sare.

Astaamaha Muhiimka ah

Dib u dhigista ololka: UL 94 V-0 ayaa lagu qiimeeyay, is-deminta

Iska caabin sare oo dabagal ah: CTI ≥500 V, 600 V caadiga ah (IEC 60112), caabbinta arc ≥180 s

Awoodda korantada: ≥10.5 kV/mm siman ilaa lamination (IEC 60243, saliid, 90 °C, 2 mm)

Awoodda makaanikada: xoogga dabacsanaanta ≥130 MPa, xoogga saamaynta ≥35 kJ/m², cabbir ahaan deggan culeyska hoostiisa

Nuugista biyaha hooseeya: ≤63 mg oo ku saabsan muunad 4 mm (ISO 62), iska caabin dahaarka deggan kadib 24 saacadood

Waxqabadka kulaylka heerka F: heerkulka adeegga ilaa 155 °C (IEC 216), index adkeysiga kulaylka 130 (IEC 60216)

Mashiin: Goynta CNC, qodista, shiididda iyo daloolaynta si loo sawiro, iyada oo aan lahayn delamination

Heerka: IEC 60893-3-5 / NEMA GPO-3 (UPGM203)

Qalabka & Habka

GPO-3 waxa uu ku bilaabmaa xabagta polyester-ka ee aan dheregsanayn oo lagu daray buuxinta ololka-free ee halogen. Derin fiilo galaas ah oo joogto ah oo aan tolnayn ayaa lagu dhex milmay unugga xabagta, oo lagu ururiyey biishash la xisaabiyey oo lagu xoojiyay cadaadis sare iyo heerkulka la xakameeyey ilaa si buuxda looga bogsado. Xaashiyaha ayaa markaa la gooyaa oo, meeshii loo baahdo, CNC waxaa lagu makiideeyay qaybo dahaarka dhammaatay. Sababtoo ah xoojinta waa gogosha dhalada ah ee aan toliyaha lahayn halkii ay ka ahaan lahayd maro dhalada ah, GPO-3 waxay soo saartaa dabeecad farsamo oo isotropic ah oo ku jirta diyaaradda xaashida marka loo eego muraayadaha muraayadda, oo ay weheliso arc aad u fiican iyo caabbinta raadraaca.

Shaxda qeexitaanka

Property	Unit	Value
Flexural strength, perpendicular (normal / 130 °C)	MPa	≥130 / ≥65
Impact strength, parallel, Izod notched	kJ/m²	≥35
Electric strength, perpendicular (in oil, 90 °C, 2 mm)	kV/mm	≥10.5
Breakdown voltage, parallel (in oil, 90 °C)	kV	≥35
Insulation resistance after 24 h water immersion	MΩ	≥5.0×10²
Water absorption (4 mm specimen)	mg	≤63
Density	g/cm³	1.70-1.90
Flammability	Class	V-0
Compressive strength, perpendicular	MPa	300

Foomamka la heli karo

Item	Value
Thickness	0.8-100 mm
Standard sheet size	1020*2040 mm
Color	Red, Black, White
Density	1.81-1.83 g/cm³
Surface	Smooth, uniform thickness tolerance
Custom size	Cut to drawing or sample

Codsiyada

Qalabka wax lagu beddelo iyo armaajooyinka kontoroolka - caqabadaha wejiga, gaashaanka arc, daarada korka

Transformers iyo reactors - kala-badheeyayaasha dahaarka, dahaarka xajinaya

Taageerada bar baska iyo dahaadhiyeyaasha tamarta qaybinta

Matoorada iyo koronto-dhaliyeyaasha - godadka godadka iyo qaybaha dahaarka

Tamar cusub iyo EV - baakad batteriga ah iyo qaybaha dahaarka qalabka

Gaadiidka tareenada, badda iyo hawada hawada - qaybaha dahaarka u baahan xoog iyo badbaadada dabka

Qalabka elektiroonigga ah iyo qalabka semiconductor - qaybaha dahaarka saxda ah ee mashiinada

Mashiinka CNC ee gaarka ah

Noo soo dir sawir, muunad ama xitaa sawir-gacmeed - kooxdayada injineernimada waxay dib u eegaan joomatari, waxay talo ka bixiyaan darajada iyo dhumucda, oo mashiinada qaybta qalabka CNC. Qaybaha caadiga ah waxaa ka mid ah taageerada baararka baska, caqabadaha wejiga, gaashaanka arc, meelaha dahaarka ah, meelaha bannaan ee looxyo iyo saqadaha korka. Dulqaadyada, qaababka daloolka, miiska miiska iyo dhammaadka cidhifyada ayaa lagu xaqiijiyay ka soo horjeeda sawirkaaga ka hor wax soo saarka.

Xaqiijinta Tayada

Nidaamka Maareynta Tayada ISO 9001, ISO 14001 Nidaamka Maareynta Deegaanka, IATF 16949 (oo hore TS16949)

Warbixinta kormeerka dufcadda oo la soo saaray ka hor intaan la dhoofin, daboolaya muuqaalka, cabbirka, dhumucda iyo waxqabadka dielectric

Baaqa EU RoHS iyo MSDS diyaar u ah xeraynta u hoggaansanaanta

Tijaabada qolo saddexaad waxay ka warbixisay xoogga dielectric, heerka kulaylka iyo ololka la heli karo haddii la codsado

Shirkadda National High-Technical Enterprise, "Specialized and Sophisticated" ganacsi, Summada caanka ah ee Guangdong

Baakadaha & Bixinta

Waraaqaha waa la isku dhejiyay oo waxaa ka buuxa warqad kraft ah oo ku yaal saqafka saqafka ah; baakadaha caadiga ah waa la heli karaa haddii la codsado. Jadwalka kaydka diyaarsan iyo jadwalka wax soo saarka ayaa la xaqiijiyay si kasta - u dir qeexidaada, dhumucdaada, cabbirka xaashida iyo tirada wakhtiga hogaanka adag.

Waa maxay sababta wax looga iibsado XYH

20 sano oo agabka dahaarka ah: la aasaasay 2006, wax soo saarka, machining, design iyo iibinta hal shirkad

Awoodda warshadda: 20,000 m² warshad, 5,000+ m² bakhaar madax-bannaan, 2,000+ tan kayd diyaarsan

Awoodda mashiinnada xoogga leh: 100+ mashiinnada wax soo saarka oo ay ku jiraan 100+ xarumaha mashiinnada CNC, 200+ shaqaale

Shabakadda sahayda caalamiga ah: 14 laamood oo gudaha ah iyo 5 laamood oo dibadda ah (oo ay ku jiraan khadka wax soo saarka ee Vietnam), oo lagu daray kaydinta dibadda

Taageerada injineernimada: 20 sano oo waayo-aragnimo xulashada agab iyo qaab-dhismeedka, muunado A4 ayaa diyaar ah

FAQ

S: Maxaa xaashi GPO-3 ka samaysan yahay? GPO-3 (UPGM203) waa heerkulbeeg heerkulbeeg ah oo ah resin polyester-ka aan dheregsanayn oo lagu xoojiyey derin fiilo galaas ah oo joogto ah, oo leh nidaam buuxinta ololka-celinta ee halogen-free. Waxay u hoggaansantaa IEC 60893-3-5 / NEMA GPO-3 waxaana lagu qiimeeyay UL 94 V-0.

S: GPO-3 ama FR4/G10/3240 xaashida epoxy-kee ayaan doortaa? Dooro GPO-3 marka qaansada iyo iska caabbinta raadraaca, waxqabadka ololka iyo hufnaanta kharashku ay khusayso inta badan - sida caadiga ah xannibaadaha beddelka, taageerada baska iyo qaybaha dahaarka-sare ee (CTI ≥500 V, caadiga ah 600 V; UL 94 V-0). Dooro darajooyinka epoxy-ga sida FR4, G10 ama 3240 marka xoogga farsamada sare iyo iska caabbinta qoyaanku ay yihiin mudnaanta, sida substrates PCB iyo qaybaha farsamada saxda ah. Injineeradayadu waxay kugula talin karaan codsigaaga iyo sawirkaaga.

S: Waa maxay dhumucda iyo cabbirka xaashida aad bixisaa? Ma gooyn kartaa cabbirka? Dhumucda 0.8 mm ilaa 100 mm, cabbirka xaashida caadiga ah 1020*2040 mm, casaan, madow ama caddaan. Waxaanu CNC gooynay, qodnay oo ku shubnay sawirkaaga ama muunaddaada.

S: Heerkulkee ayay xaashida GPO-3 u adkeysan kartaa? Walaxda heerka F: heerkulka adeega ilaa 155 °C (IEC 216, 20,000 h) oo leh tusaha adkeysiga kulaylka ee 130 (IEC 60216). Qiimaha korantada iyo farsamada waxaa lagu qeexay heerkulka qolka iyo 130 °C, sida ku qoran shaxda qeexitaanka.

S: Ma bixisaa muunado? Haa — shaybaar A4 ayaa diyaar ah. Fadlan wadaag darajada, dhumucda iyo tirada aad qiimaynayso.

S: Miyaad keeni kartaa warbixinnada imtixaanka iyo dukumentiyada u hoggaansanaanta? Haa Warbixinta kormeerka dufcada ayaa la soo saaray ka hor inta aan la rarin, iyo dukumeentiyada RoHS/MSDS waa la heli karaa. Warbixinada imtixaanka qolo saddexaad ee ka hadlaya xoogga dielectric, heerka kulaylka iyo ololka ayaa la bixin karaa haddii la codsado.

S: Sidee baa xaashida loo raray oo loo raray? Waraaqaha waxaa ka buuxa warqad kraft ah oo ku yaal sagxadaha alwaaxda; baakadaha caadiga ah waa la heli karaa. Habka rarida, dekeda iyo wakhtiga hogaanka ayaa lagu xaqiijiyay dalabkaaga.
