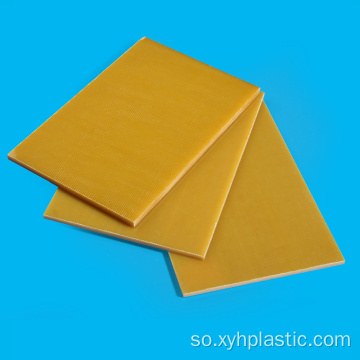

Fr4 xaashida
FR4 ma aha magac shey ah, laakiin nooc ka mid ah fasal u adkaysi u adkaysiga dabka, oo matalaya qalabka resin ayaa iskiis u baabi'in kara marka rasaasta rasaasta. Hadda waxaa jira dhammaan noocyada alaabta fr4 ah oo adeegsanaya sida PCB, laakiin kuwa ugu weyn ayaa ka kooban resin resin, prefer iyo fiberlass.
|
FR4 sheet
|
|||
|
Properties
|
Unit
|
Grade
|
|
|
FR-4,Grade A
|
|||
|
Flexural strength perpendicular to laminations (A: under normal conditions E-1/150: 150±5 °C . Thickness:≥1.6mm)
|
≥
|
Mpa
|
340
|
|
Compression strength perpendicular to laminations
|
≥
|
Mpa
|
350
|
|
Impact Strength parallel to laminations (Charpy,Thickness:≥5mm)
|
≥
|
kJ/m2
|
33
|
|
Insulation Resistance after immersion in water (D-24/23)
|
≥
|
Ω
|
5.0×108
|
|
Dielectric strength perpendicular to laminations (in 90±2°C transformer oil, 1 mm in thickness)
|
≥
|
MV/m
|
11.8
|
|
Breakdown voltage parallel to laminations (in 90±2°C transformer oil)
|
≥
|
KV
|
35
|
|
Permittivity (50MHz)
|
≤
|
-
|
5.5
|
|
Dissipation factor (50Hz)
|
≤
|
-
|
0.035
|
|
Water absorption (D-24/23, 3mm in thickness)
|
≤
|
mg
|
20
|
|
Density
|
|
g/cm3
|
2.0
|
|
Flammability
|
|
Class
|
V-0,V-1
|
|
Color
|
|
-
|
Natural
|
-
Brand:XYHMin. Dalbo:KilogramModel No:FR4-001Gaadiidka:Ocean,Land,AirBaakadaha:kartoonada iyo Sariiraha ama sida loo baahdo.Kartida Bixinta:100Tons per monthGoobta Asalka:Shenzhen, ShiinahaWax-soo-saarka:500Tons per monthG10 / EPGC 201 iyo FR4 / EPGC 202 Epoxy Fiberglass Maro FR4 waa koronto alkali-free galaas tolsan saldhig dhar-dharka impregnated epoxy resin binder by processing hoos cadaadiska iyo kulaylka, kuwaas oo leh awood aad u sarreeya oo farsamo, sifooyin...
