Tusaale ahaan.: XYH-8C-002
Brand: XYH
Origin: Maacuun
Meesha Asalka Ah: Shiinaha
Adeegga Waxqabadka: Wax ku shubid, Goynta
Magaca: Pa6 Nylon
Size: 4-300 Diameters
Color: Black/White
Sample: free (of charge)
Style: Cast/Extruded
Trade Terms: FOB, CFR, CIF
MOQ: 20KG
Shipping Port: Shenzhen
Item: High Machine Strength MC Nylon Sheet for Sale
Grades: MC Nylon / PA6
| Iibinta Cutubyada | : | Kilogram |
| Nooca Xirmada | : | Xaraashyada alwaax / kartoonnada / Blaxda |
| Sawir Tusaale | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
Description:

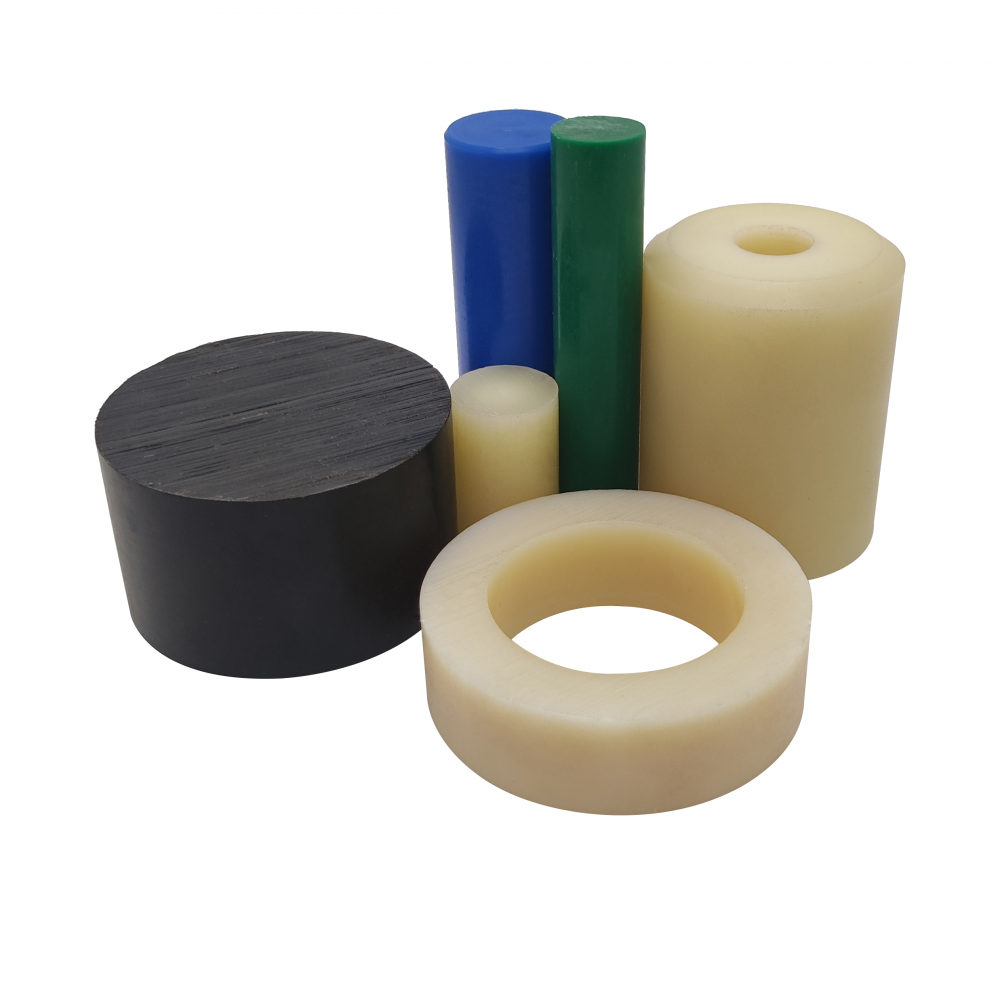

PA6 (Nylon 6,(Polyamide) sheet, this material has the best comprehensive performances , including mechanical strength , rigidity , stiffness , mechanical cushioning property and abrasion resistance .In addition it have good electric insulation capability and chemical resistance. This made PA6 to be a "General Purpose" material for the manufacturing of mechanical structural components and maintenance parts.
Main Properties:
Strong mechanical strength
High rigidity
Good glide and damping ability
Good chemical stability against organic solvents and fuels
Good at dampening
High heat deflection temperature
Dimension stability,
Application:
Bearing parts,
Gear wheels,
Pinp parts,
Sliding rails,
Sliding rails,
Castors,
Fitting.
Physical Datasheet:
|
Item |
PA6 SHEET |
|
Color: |
White,black, blue |
|
Proportion: |
1.15g/cm³ |
|
Heat resistance (continuous): |
85℃ |
|
Heat resistance (short-term): |
160℃ |
|
Melting point |
220℃ |
|
Flammability(UI94): |
HB |
|
Tensile modulus of elasticity: |
3250MPa |
|
Dipping into water at 23℃ for 24h |
86% |
|
Dipping into water at 23℃ |
9% |
|
Bending tensile stress/ Tensile stress off shock |
76/- Mpa |
|
Breaking tensile strain |
>50% |
|
Compressive stress of normal strain-1%/2%: |
24/46 MPa |
|
Pendulum gap impact test |
5.5 KJ/m2 |
|
Rockwell hardness: |
M85 |
|
Dielectric strength: |
25 kv/mm |
|
Volume resistance: |
10 14Ω×cm |
|
Surface resistance: |
10 13Ω |
|
Relative dielectric constant-100HZ/1MHz: |
3.9/3.3 |
|
Critical tracking index(CTI) |
600 |
|
Bonding capacity: |
+ |
|
Food contact: |
+ |
|
Acid resistance: |
- |
|
Alkali resistance |
+ |
|
Carbonated water resistance: |
+/0 |
|
Aromatic compound resistance: |
+/0 |
|
Ketone resistance: |
+ |
