FR4/G10/G11 Xaashiyaha Dahaarka Fiber-ka Epoxy Glass ee Ilaalinta Cathodic & Kahortagga Daxalka Saliidda & Gaaska
Dulmarka alaabta
Goobta ilaalinta cathodic iyo ka hortagga daxalka saliidda & gaaska, xaashida dahaadhka fiber-ka galaaska (gaar ahaan FR4/G10/G11 xaashida fiber-glaas ee epoxy) ayaa ah agabyo lama huraan ah. Our epoxy galaas dahaaridda fiber galaas waxaa soo saaray by impregnating sare-nadiifinta epoxy-nadiifinta sare leh maro fiber galaas alkali-free, lagu daaweeyay hoos heerkulka sare iyo cadaadis sare. Si gaar ah loogu farsameeyay nidaamyada ilaalinta cathodic ee dhuumaha saliidda iyo gaaska, waxay keenaan dahaarka korantada ee gaarka ah, xoogga farsamada, iska caabinta daxalka, iyo xasilloonida cabbirka, iyagoo si dhammaystiran u buuxinaya shuruudaha go'doominta ee dhammaan xaaladaha ka hortagga daxalka gaaska. Sida walxaha asaasiga ah si loo hubiyo hawlgalka hufan ee nidaamyada ilaalinta cathodic iyo kordhinta nolosha adeegga dhuumaha, alaabtu waxay ku habboon tahay mashiinnada saxda ah ee CNC, oo loo habeyn karo gaasaska dahaarka ee kala duwan, qaybaha, iyo taarikada saldhigga. U hoggaansanaanta heerarka caalamiga ah sida ASTM D709 iyo IEC 60893, waxaa si weyn loogu isticmaalaa saliidda caalamiga ah & dhuumaha gaasta, dhuumaha fogfog, taangiyada kaydinta, iyo mashaariicda kale ee ka hortagga daxalka, bixinta ammaan, la isku halayn karo, iyo xal dahaarka waara ee warshadaha saliidda & gaaska.
Tilmaamaha Farsamada (Ilaalinta Katooliga & Darajada Ka Hortagga Daxalka Saliidda & Gaaska)
| Parameter Category |
Detailed Specifications |
| Core Material |
Alkali-free glass fiber cloth + epoxy resin (FR4/G10/G11 optional) |
| Thickness Range |
0.5mm - 50mm (Optimal for flange gaskets: 1.0-5.0mm; partitions/base plates: 3.0-10.0mm, fully customizable) |
| Standard Sizes |
1020×1220mm, 1020×2040mm, 1220×2440mm (large-format customization available) |
| Color |
FR4: Yellow-green / Water-green; G10/G11: Black / Natural color (customizable) |
| Key Electrical Properties |
Insulation Resistance: ≥1×10¹²Ω; Dielectric Strength: ≥15kV/mm; Dielectric Constant: 4.5-5.5 (1MHz) |
| High Temperature Resistance |
FR4: Continuous use temperature 130℃; G10: 150℃; G11: 180℃ (short-term resistance up to 200℃) |
| Mechanical Properties |
Flexural Strength: ≥350MPa; Tensile Strength: ≥200MPa; Impact Strength: ≥15kJ/m² |
| Environmental Adaptability |
Water Absorption: ≤0.15%; Corrosion Resistance: Resistant to oil & gas, acids, alkalis, salt spray, soil corrosion; Flame Retardancy: UL94 V-0 |
| Processability |
Compatible with CNC engraving, cutting, stamping, drilling, processable for various special-shaped insulation parts |
| Certifications & Compliance |
ISO9001, ISO14001, RoHS |
Astaamaha Alaabta Muhiimka ah (oo loogu talagalay Ilaalinta Cathodic & Kahortagga Daxalka Saliidda & Gaaska)
Waxqabadka dahaarka aadka u daran, baabi'inta khasaaraha hadda jira
Laga sameeyay xabagta epoxy-nadiifinta sare iyo fiber galaas alkali-free, oo leh caabbinta dahaarka ilaa 1 × 10¹²Ω iyo xoogga dielectric ≥15kV/mm, waxay si wax ku ool ah u go'doomisaa ilaalinta cathodic hadda, waxay ka hortagtaa khasaaraha hadda jira ee isku xirka dhuumaha, waxay hubisaa awoodda ilaalinta xasilloonida ee nidaamyada ilaalinta cathodic, waxayna ka fogaataa wax-soo-saarka dhuumaha hadda jira, oo ay ka ilaaliso burburka dhuumaha hadda jira. gaasaska dahaarka.
Iska caabinta Daxalka Sare, La qabsiga Saliida Adag & Deegaanka Gaaska
U adkaysata warbaahinta daxalka ah sida saliidda & gaaska, saliidda cayriin, gaasta dabiiciga ah, acids, alkalis, buufinta milixda, iyo carrada, waxay ahaanaysaa degganaan la'aan biyaha nuugista, gabowga, ama burburka marka muddo dheer lagu isticmaalo meelaha la aasay, qoyaanka, ama daxalka. Waxay si fiican ula qabsanaysaa xaaladaha ka hortagga daxalka ee bannaanka/dhulka hoostiisa sida dhuumaha saliidda & gaaska, taangiyada kaydinta, iyo dhuumaha fogfog, oo leh nolol adeeg aad uga badan agabka dahaarka caadiga ah.
Xoog Sare & Deganaanshiyaha Cabbirka, Saamaynta & Diidmada Qallooca
Iyada oo xoogga dabacsanaanta ≥350MPa, waxay leedahay awood farsamo oo aad u fiican iyo iska caabin saameyn leh, u adkeysiga cadaadiska iyo gariirka inta lagu jiro rakibidda dhuumaha, baaritaanka cadaadiska, iyo hawlgalka. Gawaarida Flange ma cadaadiyo ama ma beddelaan inta lagu jiro isticmaalka, ilaalinta shaabadda iyo waxqabadka dahaarka muddada dheer; Qaybaha iyo taarikada saldhigyadu waxay ahaanayaan kuwo deggan qaab dhismeedkooda iyada oo aan la diirin ama dillaacin, hubinta amniga dahaarka gudaha ee qalabka.
Cadaadiska Heerkulka Sare & Dib u Dhaca Ololka, La qabsiga Xaaladaha Shaqo ee Kakan
Darajada G11 waxay leedahay heerkulka isticmaalka joogtada ah ilaa 180 ℃ iyo iska caabin muddo gaaban ah ilaa 200 ℃, halka la gaarayo UL94 V-0 ololka. Waxay ku habboon tahay qalabka heerkulka sare, meelaha alxanka, nidaamyada kuleylka haanta kaydinta, iyo xaaladaha kale ee warshadaha saliidda & gaaska, is-deminta haddii uu dab kaco iyada oo aan olol lahayn, kor u qaadida badbaadada wax soo saarka saliidda & gaaska.
Makiinadda Fudud & Habaynta, La kulmidda Dhammaan Shuruudaha Muuqaal
La jaan qaada xaradhka CNC, shaabadeynta, qodista, iyo tignoolajiyada kale ee farsamaynta, waxaa si sax ah loogu baaraandegi karaa gaasaska dahaarka flange kala duwan, qaybo-qaabeeya, iyo taarikada saldhiga tijaabada. Iyada oo la xakameynayo dulqaadka cabbirka adag, waxay la qabsanaysaa qeexitaanno kala duwan oo ah flanges dhuumaha, armaajooyinka awoodda ka hortagga daxalka, iyo sanaadiiqda isgoysyada tijaabada, iyadoo taageereysa habeynta dufcadaha yar iyo wax soo saarka ballaaran.
Dhacdooyinka Codsiga Muhiimka ah (Saddexda Xaaladood ee Muhiimka ah ee Ilaalinta Cathodic & Kahortagga Daxalka Saliidda & Gaaska)
1. Xirmooyinka Go'doominta Flange (FIK)

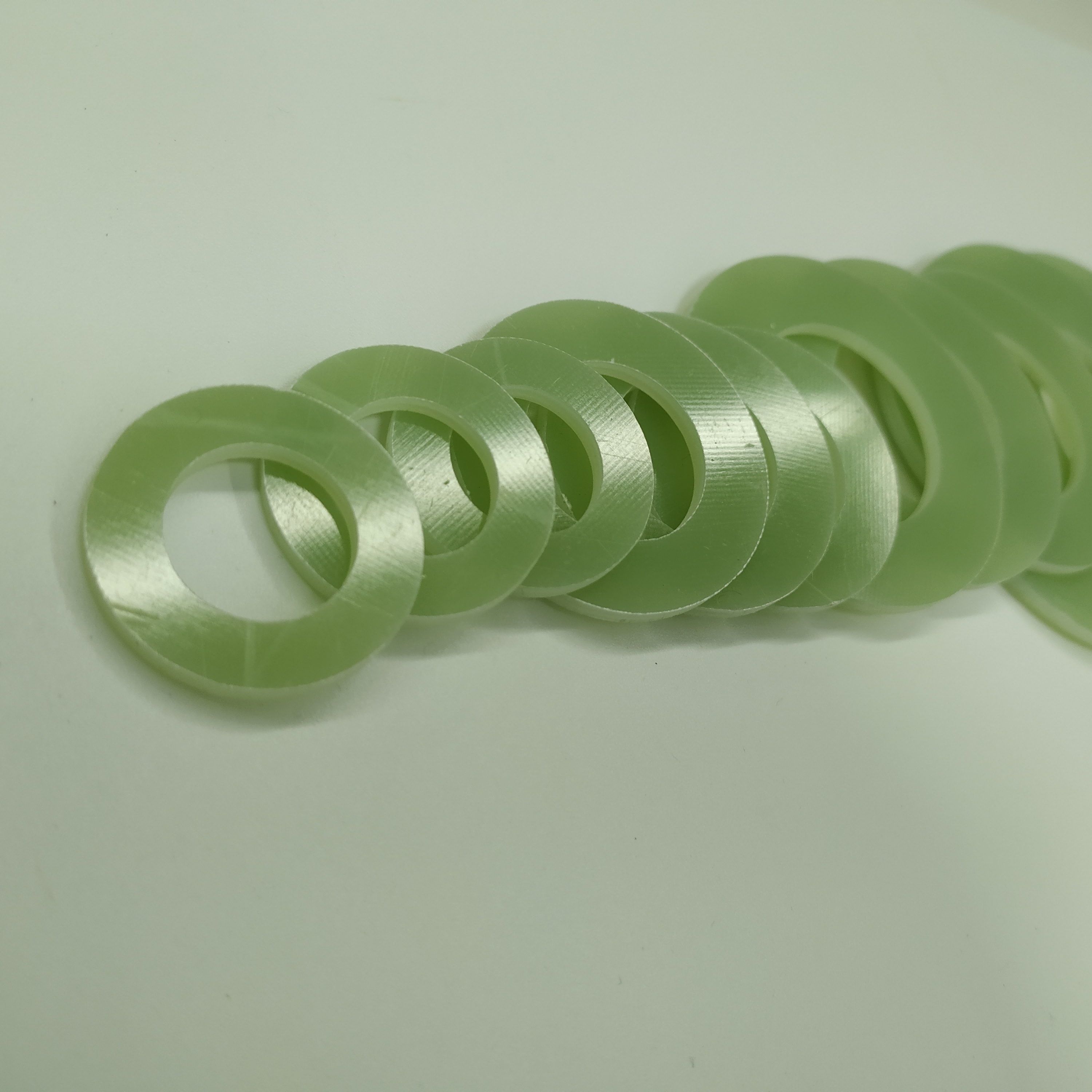

Marka la dhigayo dhuumaha saliidda iyo gaaska, G10/G11 go'yaal fiber galaas ah waa in loo adeegsadaa sida gaasaska dahaadhka ee isku xirka dhuumaha si looga hortago luminta ilaalinta cathodic hadda. Waraaqahayada fiber-ka galaaska ah ee epoxy waxaa loo habayn karaa gaasaska dahaarka flange-ga caadiga/aan caadiga ahayn, iyadoo la samaynayo xirmooyin go'doomin oo dhammaystiran oo leh gacmo-celin iyo weel Waxay si wax ku ool ah u go'doomiyaan dhuumaha ka soo horjeeda geesaha iyo boolalka, xannibaadda shuntiga hadda jira, waxay xaqiijiyaan waxtarka ilaalinta nidaamka ilaalinta cathodic, iyo ka fogaanshaha daxalka korantada ee dhuumaha, u adeega sida dahaarka udub-dhexaadka ah ee dhuumaha fog ee saliidda & gaaska, ururinta dhuumaha, iyo isku xirka taangiyada kaydinta.
2. Transformer Rectifiers gudaha
Loo isticmaalo sida qaybo dahaarka ah iyo looxyada ku dhejinta terminaalka ee armaajooyinka awooda ka hortagga daxalka. Waxqabadka sare ee dahaarka ee xaashida fiber galaas ee epoxy waxay go'doomiyaan wareegyada-voltage sare ee golaha wasiirada, ka hortagga daadinta korantada iyo wareegyada gaaban, hubinta hawlgalka xasilloon ee rectifiers transformer (qalabka ilaalinta cathodic). Sida loox-kordhinta terminal, waxay bixiyaan taageero farsamo iyo go'doomin koronto, ka fogaanshaha shilalka badbaadada ee ay sababaan cilladaha qalabka, waana qaybaha udub dhexaadka u ah nidaamyada korantada ilaalinta cathodic.
3. Goobaha Imtixaanka
Loo isticmaalo sidii taarikada saldhigga dahaarka ee sanduuqyada isgoysyada tijaabada ee dhulka dhuumaha. Saldhigyada tijaabada waxaa loo isticmaalaa si loola socdo awoodda ilaalinta cathodic ee dhuumaha. Sida taarikada saldhigga dahaarka, xaashida fiber-ka galaaska epoxy waxay go'doomiyaan khadadka tijaabada ee sanduuqyada isgoysyada qolofyada birta, ka hortagga faragelinta hadda qalloocan ee tijaabada suurtagalka ah, hubinta saxnaanta xogta tijaabada. Waxay sidoo kale iska caabiyaan daxalka iyo qoyaanka meelaha bannaanka ah, iyagoo kordhinaya nolosha adeegga xarumaha tijaabada, waxayna yihiin agabka dahaarka ee nidaamka ilaalinta dhuumaha cathodic.
Dhacdooyinka Codsiga Dheeraadka ah
- Kahortagga daxalka haanta kaydinta saliidda & gaaska: go'doominta taangiyada taangiga hoose, gaaska dahaarka ee gidaarada haanta
- Saliida & Kaalmaha Shidaalka: Go'doominta dahaarka ee valves, taageerooyinka dahaarka ee qalabka
- Saliida iyo meelaha gaaska ee xeebaha: dahaarka Flange ee dhuumaha xeebaha, qaybaha dahaarka ee qalabka
- Tas-hiilaadka ilaalinta cathodic caawiye: Kala-goysyada dahaadhka, qaybaha dahaadhka ee ceelasha tijaabada
Adeegyada Habaynta
- Baaxadda Baaxadda & Dhumucda: Dhumucda la beddeli karo laga bilaabo 0.5mm ilaa 50mm, cabbirrada caadiga ah/aan caadiga ahayn, la qabsiga qeexitaannada kala duwan ee flanges, armaajooyinka, iyo saldhigyada tijaabada
- Xulashada walxaha: FR4 (ujeedada guud), G10 (heerkul dhexdhexaad ah), G11 (heerkulka sare), shuruudaha shaqada oo u dhigma sida loogu baahan yahay
- Adeegyada Habaynta: Xarida CNC, shaabadaynta, qodista, habaynta qaab-gaar ah, soo saarista gaasaska flange, qaybo, taargooyin sal ah oo waafaqsan sawiro
- Qalab isku-habboon: Bixi xirmooyinka go'doominta flange oo dhammaystiran (ay ku jiraan gaasaska, gacmo-gashiyada, weelasha) wax soo iibsiga hal-joojin ah
- Daawaynta Dusha: Daalid, ciid, dahaarka dahaarka, kor u qaadida iska caabinta daxalka iyo waxqabadka dahaarka
Shahaadooyinka & U Hogaansanaanta
- U hoggaansanaanta ASTM D709, IEC 60893 heerarka caalamiga ah ee xaashiyaha fiber-glaas ee epoxy
- Nidaamka Maareynta Tayada ISO9001 iyo Nidaamka Maareynta Deegaanka ISO14001 oo la shahaadeeyay
- U hoggaansanaanta EU RoHS, REACH, iyo heerarka badbaadada MSDS
- UL94 V-0 dib u dhac olol oo la shahaado, tijaabada waxqabadka dahaarka gaarka ah ee warshadaha saliidda & gaaska ayaa gudbay
- La qabsiga NACE SP0175 (Cathodic Protection Pipeline Insulation) heerka warshadaha
FAQ (Kaar ah Ilaalinta Cathodic & Kahortagga Daxalka Saliidda & Gaaska)
Q1: Maxaad u doorataa G10/G11 halkii FR4 caadiga ah ee gaaska go'doominta flange? Gacits Flange waxay ku xiran yihiin cadaadiska muddada dheer ee dhuumaha iyo isbeddelka heerkulka, iyo G10 / G11 waxay ka fogaan kartaa fashilka dahaarka ee ay keento qallafsanaanta ciriiriga, taas oo ka dhigaysa mid ku habboon duugista iyo cadaadiska sare ee xaaladaha shaqada ee saliidda & gaaska, iyada oo la hubinayo in aan lumin ilaalinta cathodic hadda.
Q2: Xaashidan dahaarka ma ku habboon tahay dhuumaha la aasay? A: Si buuxda ayaa loo dabaqi karaa. Iyada oo nuugista biyaha ≤0.15%, u adkaysata daxalka ciidda iyo daxalka buufinta milixda, waxay ahaanaysaa xasilloonaan la'aan gabowga ama burburka marka loo isticmaalo muddada dheer ee xaaladaha la aasay, oo leh waxqabadka dahaarka xasilloon, waana walxaha caadiga ah ee dahaarka flange ee saliidda duugan & dhuumaha gaaska.
Q3: Waa maxay wakhtiga hogaanka ee gaasaska go'doominta flange caadadii? gaasaska gaarka ah ee aan caadiga ahayn, wakhtiga hogaanka waa 7-15 maalmood, wax soo saarka degdega ah ayaa la heli karaa iyadoo loo eegayo horumarka mashruuca.
Q4: Sida loo doorto darajooyinka FR4/G10/G11?
- Heerkulka sare ee dhexdhexaadka ah iyo xaaladaha shaqada ee cadaadiska sare: Dooro G10;
- Heerkulka sare (ka sarreeya 150 ℃) iyo xaaladaha shaqada daxalka xooggan: Dooro G11 waxqabadka ugu fiican.
